Leading PTFE Lined Expansion Bellow Manufacturer in Ahmedabad, PTFE-lined expansion bellows are piping misalignment, vibration, and thermal expansion-absorbing flexible piping connectors employed in piping systems and provide high resistance to corrosive chemicals. The chemical inertness is given by the PTFE lining, and they are appropriate for use in applications like chemical processing, pharmaceuticals, food and beverage, power generation, and water treatment. Their non-reactive characteristics eliminate contamination, and product purity is maintained while minimizing maintenance expenses. Operating efficiently in the temperature range of -200°C to 260°C, PTFE bellows can be used for conveying aggressive materials such as sulfuric acid, hydrochloric acid, and chlorine. In Gujarat,

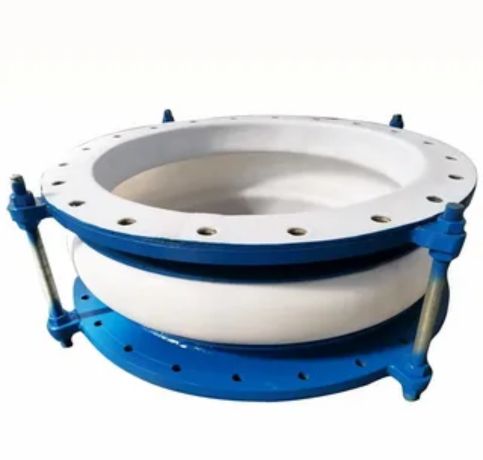

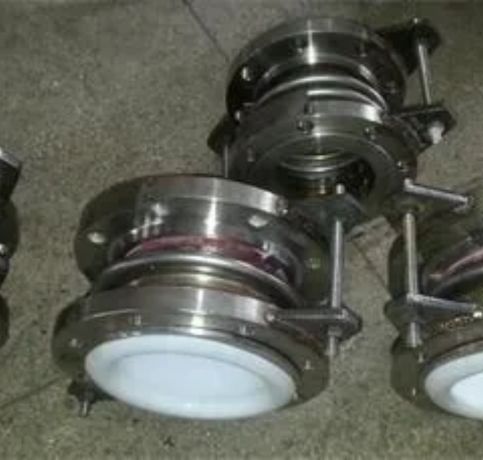

A PTFE lined expansion bellow is a flexible piping connector used for thermal expansion, vibration, and misalignment absorption in piping systems. It consists of an inner lining of PTFE (Polytetrafluoroethylene), a chemical-resistant substance that’s ideal for corrosive or high-purity services. The PTFE lining protects the metallic or fabric bellow structure from aggressive fluids and extends its lifespan. These bellows find widespread application in chemical, pharma, and food applications where the protection against corrosion and contamination is of the utmost significance. Bellow flexibility supports axial, lateral, and angular deflections as well as provides safe and effective piping system operation under dynamic conditions.
Size : 25 NB to 300 NB
Outer body : ASTM A 395 Gr 60-40-18
Flange Connection : ANSI B 16.5
Face to Face : ANSI B 16.10
Spark Test : 15 KVA
Hydro Test : at 29.8 kg/cm2
FEP- Max Temp : 180° C
PP Max Temp : 100° C
PFA Max Temp : 200° C
PTFE Lined Pipe is a leading supplier of PTFE EXPANSION BELLOW in Ahmedabad, Gujarat offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
|
SIZE NB
|
L |
RF |
TH |
NO OF
CONV |
|
25 |
50 |
51 |
12 |
-03 |
|
40 |
70 |
73 |
12 |
05- |
|
50 |
70 |
92 |
12 |
05- |
|
65 |
100 |
105 |
12 |
-05 |
|
80 |
100 |
127 |
12 |
06- |
|
100 |
100 |
158 |
16 |
-06 |
|
150 |
100 |
215 |
16 |
-06 |
|
200 |
100 |
268 |
16 |
06 |
|
250 |
125 |
320 |
28.0 |
-06 |
PTFE lining increases resistance to chemical corrosion, extending the lifespan of the expansion bellow.
Allows for reliable movement and compensation of thermal expansion or contraction without damage.
Withstands a broad temperature range, making it suitable for extreme environments.
PTFE’s non-stick properties reduce buildup, minimizing cleaning and maintenance needs
A PTFE Lined Expansion Bellow is a flexible, durable component designed to absorb movement, thermal expansion, or contraction in pipelines. It has an inner PTFE (Polytetrafluoroethylene) lining, which provides excellent chemical resistance.
PTFE Lined Expansion Bellows are commonly used in industries like chemical processing, pharmaceuticals, food processing, and oil & gas, where high corrosion resistance is required.
PTFE lining offers high chemical resistance, low friction, and excellent non-stick properties, making it ideal for transporting corrosive chemicals and preventing wear and tear.
They help to absorb thermal expansion, vibrations, and misalignments in piping systems, preventing damage to the pipes and reducing stress on the joints.
Yes, PTFE Lined Expansion Bellows can handle a wide range of temperatures, typically from -50°C to +260°C, making them suitable for both hot and cold applications
