Mehul PTFE Lined Pipes leading Ahmedabad producer and supplier of superior quality FEP, PTFE, and PFA-lined pipe fittings. Our range is formulated to offer superior performance in corrosive as well as high-temperature applications. Due to their superior chemical resistance and strength, our lined fittings are sought after for demanding industrial uses. With its roots in Ahmedabad, we specialize in offering superior quality PTFE, FEP, and PFA-lined pipe fittings with fine finishes, which ensure superior performance under any condition.

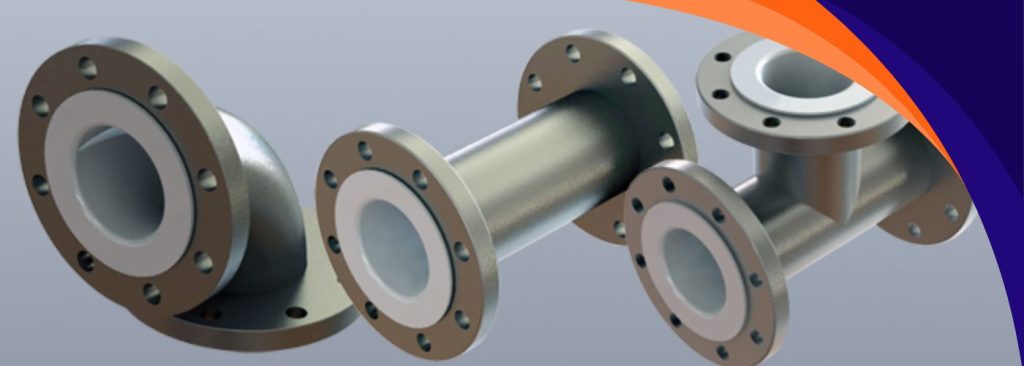

PTFE-lined pipe fittings refer to standard metallic fittings internally lined with Polytetrafluoroethylene (PTFE) to enhance the resistance of such fittings to high temperatures, corrosion, and chemicals. Typically utilized in chemical process, pharmaceutical, and wastewater industries, these tees, reducers, elbows, and flange fittings possess an enduring PTFE lining. The inner cover protects aggressive fluid from coming in contact with metal surface, therefore extending the operational life of the system and improved reliability. PTFE-lined fittings will also suit very reactive or pure chemicals under critical application.
Size : 25 NB to 300 NB
Flanges Used : ASTM A 105/IS 2062/SS 304/SS 316
Hydro Test : at 29.8 Kg/cm2
Spark Test : 15 KVA
Outer body : ASTM A 234 Gr WPB SCH-40/SS 304/SS 316
Lining : PFA
Mehul PTFE Lined Pipe is a leading supplier of PTFE Lined Pipe Fittings in Ahmedabad, Gujarat, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
|
NB
|
ID
|
RF
|
OD
|
PCD
|
No.Of Holes x Dia Of Holes
|
Lining Thickness Standard
|
Lining Thickness Full Vacuum
|
Length Max.
|
| 15 | 10.80 | 34.90 | 88.9 | 60.3 | 4×15.9 | 3.0 | 3.1 | 3000 |
| 20 | 16.00 | 42.70 | 98.4 | 69.8 | 4X15.9 | 3.0 | 3.1 | 3000 |
| 25 | 20.15 | 50.80 | 108.0 | 79.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 40 | 33.90 | 73.00 | 127.0 | 98.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 50 | 45.50 | 92.10 | 152.4 | 120.7 | 4X19 | 3.5 | 4.6 | 3000 |
| 65 | 55.68 | 104.80 | 177.8 | 139.7 | 4×19 | 3.5 | 4.8 | 3000 |
| 80 | 70.90 | 127.00 | 190.5 | 152.4 | 4X19 | 3.5 | 5.0 | 3000 |
| 100 | 94.30 | 157.20 | 228.6 | 190.5 | 8X19 | 4.0 | 5.8 | 3000 |
| 150 | 114.10 | 215.90 | 279.5 | 241.3 | 8X22.2 | 5.0 | 6.8 | 3000 |
| 200 | 195.10 | 269.90 | 342.9 | 298.5 | 8X22.2 | 5.0 | 7.9 | 2000 |
| 250 | 247.40 | 323.90 | 406.4 | 362.0 | 12X25.4 | 5.0 | 8.8 | 2000 |
| 300 | 297.00 | 381.00 | 482.6 | 431.8 | 12X25.4 | 5.0 | 9.0 | **** |
Enhanced durability in highly corrosive environments
Minimizes flow resistance and boosts efficiency.
Withstands high temperature and pressure
Delivers similar performance at lower cost.
Yes, PTFE lined pipe fittings are ideal for food and pharmaceutical applications due to their non-reactive, non-toxic, and hygienic properties, ensuring safe and contamination-free flow.
The standard thickness of PTFE lining in pipe fittings typically ranges from 3mm to 5mm, depending on the type of fitting and the specific application.
Yes, customized lengths and sizes can be provided for PTFE lined pipe fittings to meet unique project requirements and facilitate seamless system integration.
Absolutely. PTFE lined pipe fittings are highly resistant to corrosion, making them perfect for handling aggressive chemicals and harsh substances in demanding industrial environments.
Yes, PTFE lined pipe fittings are designed to withstand high temperatures, making them suitable for industries that require reliable performance in elevated temperature conditions.
We are the leading Manufacturer and Supplier of PTFE Lined Pipe, Fittings, Flanges, Spool and Valves in Ahmedabad, Gujarat.
