PTFE lined cross fittings offer superior chemical resistance, preventing corrosion and contamination from aggressive media, unlike standard metal cross fittings.
Mehul PTFE Lined Pipe is a professional producer of high-quality PTFE-lined cross fittings for use in harsh industrial conditions. Based in Ahmedabad, Saudi Arabia, we are a trusted producer and exporter of FEP, PFA and PTFE-lined products. Our PTFE-lined cross fittings are particularly developed to endure exposure to corrosive chemicals and extreme temperatures and offer stable performance and long life. Due to its superior chemical resistance, robust build and smooth interior finishes, these fittings ensure precise distribution of the flow and can be designed specifically to meet different process requirements.

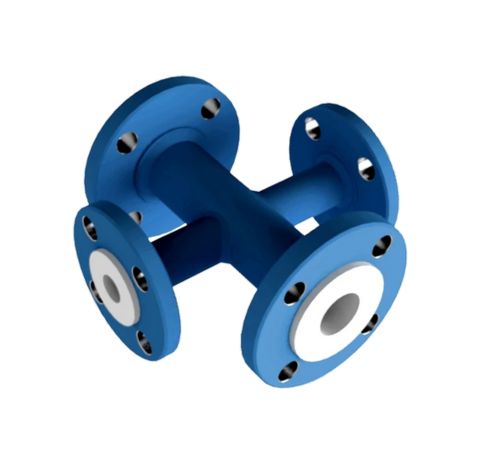

PTFE-lined cross is a four-way pipe connection utilized to connect pipelines at right angles so that fluid flow in four directions may be facilitated. The PTFE lining offers greater resistance to chemical reaction, heat and corrosion, which makes the cross find application in aggressive process environments where purity and durability are critical. Commonly applied in the petrochemical, chemical and pharmaceutical industries, the PTFE-lined cross ensures leak-proof operation and free fluid flow at four-way junctions. This property allows for even distribution and precise regulation, hence a reliable component in advanced piping systems.
Size : 25 NB to 300 NB
Outer body : ASTM A 395 Gr 60-40-18
Flange Connection : ANSI B 16.5
Face to Face : ANSI B 16.10
Spark Test : 15 KVA
Hydro Test : at 29.8 kg/cm2
FEP- Max Temp : 180° C
PP Max Temp : 100° C
PFA Max Temp : 200° C
Mehul PTFE Lined Pipe is a leading supplier of PTFE Lined Cross in Ahmedabad, Gujarat offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| NB | L | FLG. | RF | PCD | App. | App. | LINER THK | N x M | WEIGHTS | |
|---|---|---|---|---|---|---|---|---|---|---|
| O / D | O / D | T1 | T1 | Vaccume (T) | Non Vacc (T) | (kg/piece) | ||||
| 1/2″ | —- | 89 | 35.1 | 60.5 | 14.2 | 24.2 | 3.0 | 3.0 | 4 x 1/2″ | 4 |
| 3/4″ | —- | 98 | 42.9 | 69.9 | 15.7 | 27.7 | 3.0 | 3.0 | 4 x 1/2″ | 3.5 |
| 1″ | 89 | 108 | 50.8 | 79.2 | 17.2 | 29.2 | 4.0 | 3.0 | 4 x 1/2″ | 5.5 |
| 1 1/4″ | 95 | 118 | 63.5 | 88.9 | 18.7 | 30.2 | 4.0 | 3.0 | 4 x 1/2″ | 7.7 |
| 1 1/2″ | 102 | 127 | 73.2 | 98.6 | 20.5 | 32.5 | 4.0 | 3.0 | 4 x 1/2″ | 8.7 |
| 2″ | 114 | 152 | 91.9 | 120.7 | 22.1 | 37.1 | 4.0 | 3.0 | 4 x 1/2″ | 14.0 |
| 2 1/2″ | 127 | 178 | 104.6 | 139.7 | 25.4 | 40.4 | 4.0 | 3.0 | 4 x 5/8″ | 20.6 |
| 3″ | 140 | 191 | 127.0 | 152.4 | 27.9 | 42.9 | 4.0 | 3.0 | 4 x 5/8″ | 24.8 |
| 4″ | 165 | 229 | 157.2 | 190.5 | 28.9 | 43.9 | 4.5 | 3.0 | 8 x 5/8″ | 39.1 |
| 5″ | 190 | 254 | 185.7 | 215.9 | 28.9 | 43.9 | 6.0 | 5.0 | 8 x 3/4″ | 68.8 |
| 6″ | 203 | 279 | 215.9 | 241.3 | 30.4 | 45.4 | 6.0 | 5.0 | 8 x 3/4″ | 79.5 |
| 8″ | 229 | 343 | 269.7 | 298.5 | 33.4 | 48.4 | 6.0 | 5.0 | 8 x 3/4″ | 99.0 |
| 10″ | 280 | 406 | 323.9 | 362.0 | 35.7 | 50.7 | 7.5 | 5.0 | 12 x 7/8″ | 160.0 |
| 12″ | 305 | 483 | 381.0 | 431.8 | 37.8 | 52.8 | 7.5 | 5.0 | 12 x 7/8″ | 280.0 |
Withstands harsh acids and solvents.
Prevents fluid leakage at joints.
Suitable for extreme process heat.
Tailored to fit system specifications.
PTFE Lined Cross fittings are generally available in standard sizes ranging from 25mm to 300mm NB, with custom sizes available upon request.
Yes, PTFE can typically tolerate temperatures up to 260°C, making it ideal for high-temperature applications.
Use proper gaskets, follow torque specifications, and ensure flange alignment to avoid stress on the lining during installation.
PTFE lined cross fittings offer superior chemical resistance, preventing corrosion and contamination from aggressive media, unlike standard metal cross fittings.
Yes, they are compatible with a wide range of aggressive acids, bases, solvents, and other harsh chemicals.
We are the leading Manufacturer and Supplier of PTFE Lined Pipe, Fittings, Flanges, Spool and Valves in Ahmedabad, Gujarat.
