Yes, PTFE lined elbows are designed to withstand temperatures up to 230°C, though this may vary based on the pressure and specific application needs.

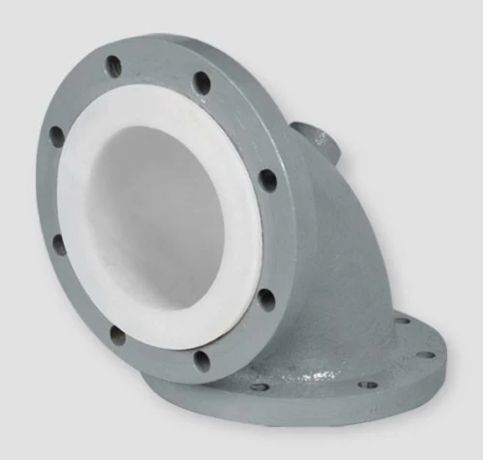

Mehul PTFE Lined Pipe is a well-known manufacturer and supplier of PTFE, FEP and PFA-lined elbows for Ahmedabad, Gujarat industries. Our elbows are designed to work better in highly corrosive and high-temperature applications and are available in 90-degree and 45-degree configurations. Our elbows ensure smooth direction change while providing superior chemical resistance and excellent mechanical strength. Based in Ahmedabad, we provide heavy-duty, precision-machined lined elbows capable of withstanding harsh conditions of industrial operation. On-site fabrication allows us to provide guaranteed, leak-free performance in harsh operating conditions.
A PTFE-lined elbow is a high-performance pipe fitting utilized to change direction of flow in piping systems handling corrosive or high-purity fluids. It consists of an outer body made of carbon steel or stainless steel and an inner lining of PTFE (Polytetrafluoroethylene), which is famous for its high resistance to chemicals and non-stick properties. PTFE-lined elbows are used extensively in chemical processing, pharma, food and beverage, and water treatment applications. They are free-flowing fluids, preventing contamination, and corrosion-resistant, even under exposure to aggressive chemicals and high temperatures.
Size : 25 NB to 300 NB
Flanges Used : ASTM A 105/IS 2062/SS 304/SS 316
Hydro Test : at 29.8 Kg/cm2
Spark Test : 15 KVA
Outer body : ASTM A 234 Gr WPB SCH-40/SS 304/SS 316
Lining : PFA
Mehul PTFE Lined Pipe is a leading supplier of PTFE Lined Elbow in Ahmedabad, Gujarat, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
|
NB
|
ID
|
RF
|
OD
|
PCD
|
No.Of Holes x Dia Of Holes
|
Lining Thickness Standard
|
Lining Thickness Full Vacuum
|
Length Max.
|
| 15 | 10.80 | 34.90 | 88.9 | 60.3 | 4×15.9 | 3.0 | 3.1 | 3000 |
| 20 | 16.00 | 42.70 | 98.4 | 69.8 | 4X15.9 | 3.0 | 3.1 | 3000 |
| 25 | 20.15 | 50.80 | 108.0 | 79.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 40 | 33.90 | 73.00 | 127.0 | 98.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 50 | 45.50 | 92.10 | 152.4 | 120.7 | 4X19 | 3.5 | 4.6 | 3000 |
| 65 | 55.68 | 104.80 | 177.8 | 139.7 | 4×19 | 3.5 | 4.8 | 3000 |
| 80 | 70.90 | 127.00 | 190.5 | 152.4 | 4X19 | 3.5 | 5.0 | 3000 |
| 100 | 94.30 | 157.20 | 228.6 | 190.5 | 8X19 | 4.0 | 5.8 | 3000 |
| 150 | 114.10 | 215.90 | 279.5 | 241.3 | 8X22.2 | 5.0 | 6.8 | 3000 |
| 200 | 195.10 | 269.90 | 342.9 | 298.5 | 8X22.2 | 5.0 | 7.9 | 2000 |
| 250 | 247.40 | 323.90 | 406.4 | 362.0 | 12X25.4 | 5.0 | 8.8 | 2000 |
| 300 | 297.00 | 381.00 | 482.6 | 431.8 | 12X25.4 | 5.0 | 9.0 | **** |
Ensures secure and safe flow direction
Performs reliably in elevated heat conditions.
Minimizes turbulence and pressure drop
Handles aggressive chemicals without degradation.
PTFE lined elbows come in both standard and custom sizes, typically ranging from 1” to 12” or larger, depending on the application.
Yes, we provide custom sizes, angles, and lining thickness based on your system design and performance needs.
A PTFE lined elbow is used to redirect flow in corrosive systems while providing resistance to chemicals, pressure, and temperature variations.
Yes, PTFE lined elbows are designed to withstand temperatures up to 230°C, though this may vary based on the pressure and specific application needs.
Yes, they are non-toxic, hygienic, and ideal for food, beverage, and pharmaceutical applications.
We are the leading Manufacturer and Supplier of PTFE Lined Pipe, Fittings, Flanges, Spool and Valves in Ahmedabad, Gujarat.
