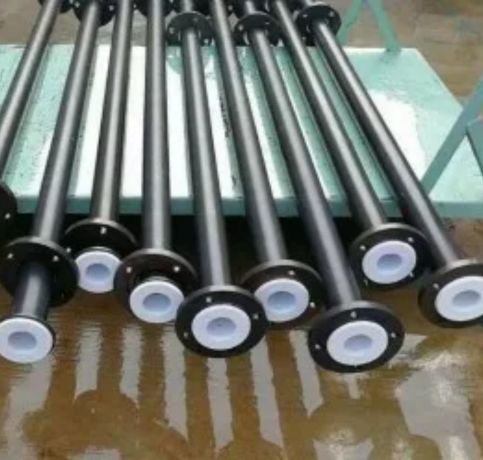

Being a major manufacturer and supplier of Mehul PTFE lined Pipe in Ahmedabad, we provide cost-efficient, high-performance piping solutions for chemical processing, pharmaceuticals, petrochemicals, and other demanding processes. Our pipes are engineered to offer long-lasting protection, low maintenance costs, and safe, reliable fluid conveyance. The MS PTFE-lined pipes utilize the mild steel (MS) strength combined with the superb chemical resistance of PTFE. The MS PE base gives mechanical strength and corrosion-resistant durability, and the PE-lined PTFE provides superior resistance to corrosive chemicals, heat, and abrasives. With a PE double-layer construction, our PTFE-lined pipes are perfect for handling challenging industrial processes.

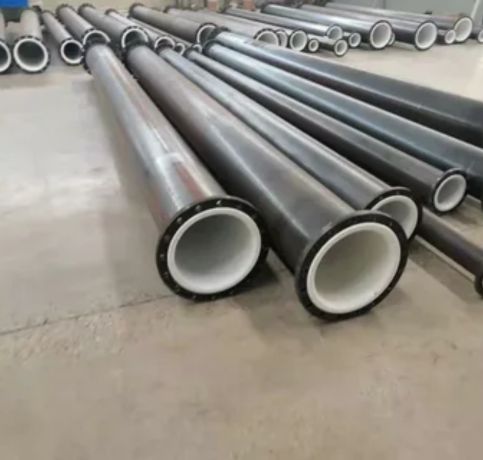

MS PTFE lined pipe is a mild steel (MS) pipe internally lined with polytetrafluoroethylene (PTFE), which is a high-performance fluoropolymer with good resistance to chemicals and non-stick in character. The lining protects the steel against corrosive chemicals, and the pipe is consequently suitable for transporting aggressive acids, bases, and solvents in chemical processing, pharmaceutical, and food processing applications. PTFE lining offers a slippery, inert surface, while MS outer shell gives mechanical strength. Both of them offer durability, safety, and longevity in hostile environments where typical metal or plastic pipes would give up their lives immediately.
Size : 25 NB to 450 NB
Pipe Material : 106 grade B Sch 40 from 25 NB to 150 NB
Flanges Used : ASTM A 105/IS 2062
Hydro Test : at 29.8 Kg/cm2
Spark Test : 15 KVA
PIPE : 1. SEAMLESS CS ASTM A106 GR.B, SCH.-40, 2. ASTM A312 TP 304, SCH.-40
FLANGE : 1. IS 2062 / ASTM A105, 2. ASTM A351 GR. CF8
Lining Material Options
PFA – ASTM D 3307
FEP – ASTM D 2116
ETFE – ASTM D 3159
PVDF – ASTM D 3322
PP – ASTM D 4101
HDPE
Mehul PTFE lined Pipe is a leading supplier of MS PTFE Lined Pipes in Ahmedabad, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
|
NB
|
ID
|
RF
|
OD
|
PCD
|
No.Of Holes x Dia Of Holes
|
Lining Thickness Standard
|
Lining Thickness Full Vacuum
|
Length Max.
|
| 15 | 10.80 | 34.90 | 88.9 | 60.3 | 4×15.9 | 3.0 | 3.1 | 3000 |
| 20 | 16.00 | 42.70 | 98.4 | 69.8 | 4X15.9 | 3.0 | 3.1 | 3000 |
| 25 | 20.15 | 50.80 | 108.0 | 79.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 40 | 33.90 | 73.00 | 127.0 | 98.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 50 | 45.50 | 92.10 | 152.4 | 120.7 | 4X19 | 3.5 | 4.6 | 3000 |
| 65 | 55.68 | 104.80 | 177.8 | 139.7 | 4×19 | 3.5 | 4.8 | 3000 |
| 80 | 70.90 | 127.00 | 190.5 | 152.4 | 4X19 | 3.5 | 5.0 | 3000 |
| 100 | 94.30 | 157.20 | 228.6 | 190.5 | 8X19 | 4.0 | 5.8 | 3000 |
| 150 | 114.10 | 215.90 | 279.5 | 241.3 | 8X22.2 | 5.0 | 6.8 | 3000 |
| 200 | 195.10 | 269.90 | 342.9 | 298.5 | 8X22.2 | 5.0 | 7.9 | 2000 |
| 250 | 247.40 | 323.90 | 406.4 | 362.0 | 12X25.4 | 5.0 | 8.8 | 2000 |
| 300 | 297.00 | 381.00 | 482.6 | 431.8 | 12X25.4 | 5.0 | 9.0 | **** |
Superior protection against corrosive chemicals.
Reduces friction and enhances flow efficiency.
Withstands high temperatures (up to 260°C) and high pressures.
More affordable than expensive alloys, offering similar performance.
MS PTFE Lined Pipe is a mild steel (MS) pipe coated with a layer of PTFE (Polytetrafluoroethylene), which provides corrosion resistance, high-temperature tolerance, and chemical resistance.
The PTFE lining protects the steel pipe from harsh chemicals, prevents rusting, reduces friction, and ensures safe transportation of aggressive fluids and gases
They are commonly used in industries such as chemical processing, pharmaceuticals, food and beverage, and petrochemicals, where corrosion resistance is crucial/
MS PTFE Lined Pipes can typically handle temperatures ranging from -200°C to +260°C, depending on the specific type of PTFE used.
Regular inspection is essential to ensure the lining remains intact. Avoid physical damage to the lining and ensure that the pipe is not exposed to temperatures or chemicals beyond its specified limits.
