Being one of the prominent HDPE Lined Pipe manufacturers in Ahmedabad, we deal in supplying sophisticated anti-corrosion piping solutions to various industries like oil & gas, mining, water treatment, and chemical processing. The HDPE lining increases the lifespan of steel pipes, coupling strength with unparalleled chemical resistance. Our proprietary lining processes, such as high-pressure insertion or thermal shaping, guarantee a leak-free bond. Coming in a range of diameters and thicknesses, our pipes are of international standards with up to 100 bar pressure rating. Designed to withstand tough environments, our Mehul PTFE lined pipe provide long service life, minimal maintenance, and safe transportation of fluids across diverse applications.
Use HDPE (High-Density Polyethylene) when you need a tough, low-cost, and chemically resistant plastic for general-purpose applications like containers, piping, and wear strips. It performs well at low to moderate temperatures (up to ~120°C) and is easy to fabricate.
Select PTFE (Polytetrafluoroethylene) where extreme chemical resistance, high-temperature stability (up to ~260°C), and a very low friction coefficient are essential—perfect for seals, gaskets, and non-stick or sliding applications. PTFE is more costly and less mechanically robust than HDPE but performs better in challenging environments.

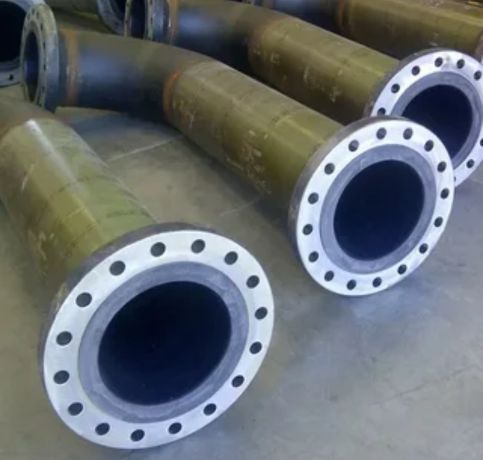

HDPE-lined pipe is a steel pipe lined on the inside with High-Density Polyethene (HDPE). This combination gives the steel strength and the smoothness and corrosion resistance of HDPE. HDPE-lined pipes are used in mining, slurry, water, and chemical transport where internal abrasion or corrosion is in question. The HDPE liner is placed in the steel pipe and then expanded to a close fit. This system prolongs the life of the pipe, minimizes maintenance, and maximizes flow efficiency in harsh or abrasive service. It’s ideal for long-term, high-performance piping application.
Mehul PTFE Lined Pipe is a leading supplier of HDPE Lined Pipes in Ahmedabad, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| Standard Liner Thk. | Heavy* | |||||
|---|---|---|---|---|---|---|
| 1 (25) | 21 | 51 | 3.0 | 4 | 100 | 6000 |
| 11/2 (40) | 34 | 73 | 3.0 | 4 | 100 | 6000 |
| 2 (50) | 46 | 92 | 3.0 | 4.5 | 150 | 6000 |
| 21/2 (65) | 59 | 105 | 3.0 | 4.0 | 150 | 6000 |
| 3 (80) | 74 | 127 | 3.0 | 5.0 | 150 | 6000 |
| 4 (100) | 96 | 157 | 3.0 | 6.0 | 150 | 6000 |
| 6 (150) | 144 | 212 | 5.0 | 7.0 | 150 | 6000 |
| 8 (200) | 194 | 270 | 5.0 | 7.0 | 200 | 6000 |
| 10 (x250) | 242 | 324 | 6.0 | 8.0 | 200 | 6000 |
| 12 (x300) | 292 | 381 | 6.0 | 9.0 | 200 | 6000 |
Designed to withstand high pressures, ensuring long-term performance in demanding environments
Highly resistant to chemical corrosion, providing longevity in aggressive environments
Compatible with fusion welding, mechanical coupling, and adhesive bonding for seamless integration
Requires minimal upkeep, leading to lower maintenance costs over time
An HDPE lined pipe is a steel or other rigid pipe internally lined with High-Density Polyethylene (HDPE) to enhance corrosion resistance and improve flow characteristics.
HDPE lining offers excellent chemical resistance, low friction loss, extended service life, and leak prevention, making it ideal for corrosive or abrasive fluid transport.
They are commonly used in mining, oil & gas, chemical processing, wastewater treatment, and industrial slurry transport.
The lining is typically inserted using a tight-fit or swage-lining method, where the HDPE liner is reduced in diameter, inserted into the host pipe, and then allowed to revert to its original shape for a snug fit.
Yes, when combined with a suitable host pipe (like carbon steel), HDPE lined pipes can handle moderate to high-pressure applications, depending on the design and installation.
We are the leading Manufacturer and Supplier of PTFE Lined Pipe, Fittings, Flanges, Spool and Valves in Ahmedabad, Gujarat.
