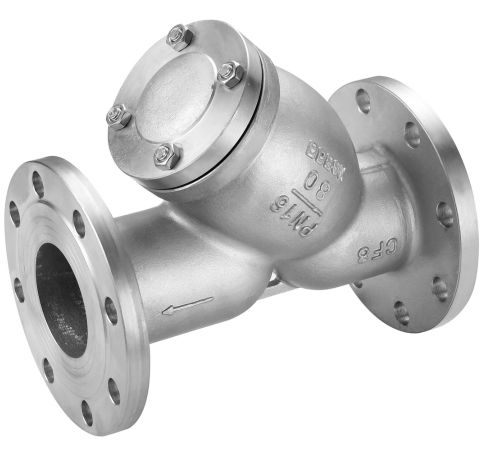

Mehul PTFE Lined Pipe, a leading manufacturer of PTFE, FEP, and PFA Lined Strainer based in Ahmedabad, India, offers top-class FEP/PFA Lined “Y” Type Strainers of high quality that conforms to national as well as international standards. The FEP/PFA Lined “Y” Type Strainer derives its name from its Y-shaped structure, which is meant to filter out big particles at the initial stage of flow. These strainers are especially beneficial in preventing solid contaminants from entering pipelines.
A PTFE Lined Y Type Strainer is a chemical filter device used in pipes to strain and remove solid impurities from fluids or gases. It has a mesh filter with a Y-shaped body and an internal PTFE lining that is very chemically and thermally resistant. The strainer protects delicate equipment like pumps and valves from being clogged by debris. Commonly used in petrochemical, chemical and pharmaceutical industries, it avoids the wasteful flow and extends the life of equipment downstream.
Size : 25 NB to 300 NB
Outer body : ASTM A 395 Gr 60-40-18
Flange Connection : ANSI B 16.5
Face to Face : ANSI B 16.10
Spark Test : 15 KVA
Hydro Test : at 29.8 kg/cm2
FEP- Max Temp : 180° C
PP Max Temp : 100° C
PFA Max Temp : 200° C
Mehul PTFE Lined Pipe is a leading supplier of PTFE Lined Y Type Strainer in Ahmedabad, India, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| Size(mm) | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 |
| Size(inch) | 1″ | 1½” | 2″ | 2½” | 3″ | 4″ | 6″ | 8″ |
| L | 190 | 260 | 284 | 305 | 348 | 415 | 508 | 650 |
| Ød | 25 | 38 | 50 | 65 | 75 | 100 | 150 | 200 |
| O.D. ØD | 110 | 125 | 150 | 180 | 190 | 230 | 280 | 345 |
| P.C.D. ØK | 79.2 | 98.5 | 120.6 | 139.7 | 152.4 | 190.5 | 241.3 | 298.4 |
| R.F.DIA. ØRF | 50.8 | 73.0 | 92.1 | 104.7 | 127.0 | 157.2 | 215.9 | 269.9 |
| No. OF HOLE N | 4 | 4 | 4 | 4 | 4 | 8 | 8 | 8 |
| HOLE DIA. ØH | 15.8 | 15.8 | 19 | 19 | 19 | 19 | 22.2 | 22.2 |
Effectively removes debris and particulates, protecting downstream equipment and improving system longevity.
Operates efficiently under high-temperature conditions without compromising material integrity or filtration performance.
PTFE lining adds durability, ensuring the strainer withstands harsh operational conditions for extended periods.
Requires less upkeep due to durable PTFE lining.
Install it with the screen pointing downward for optimal debris collection, and ensure the flow direction matches the arrow marked on the body.
The cleaning frequency depends on the contamination level of the fluid being processed. However, regular inspections are advised to ensure optimal flow and safeguard downstream equipment.
No, the PTFE lining is typically bonded during the manufacturing process and cannot be replaced. If it gets damaged, the entire strainer will usually need to be replaced.
PTFE Lined Y Type Strainers are widely used in industries like chemicals, pharmaceuticals, and food processing, where they handle highly corrosive or aggressive fluids, providing protection for both pipelines and equipment.
The body is usually made from ductile iron, carbon steel, or stainless steel, with an internal PTFE lining for chemical resistance and durability.
